Energy Storage Battery, LiFePO4 Rack-Mount Battery

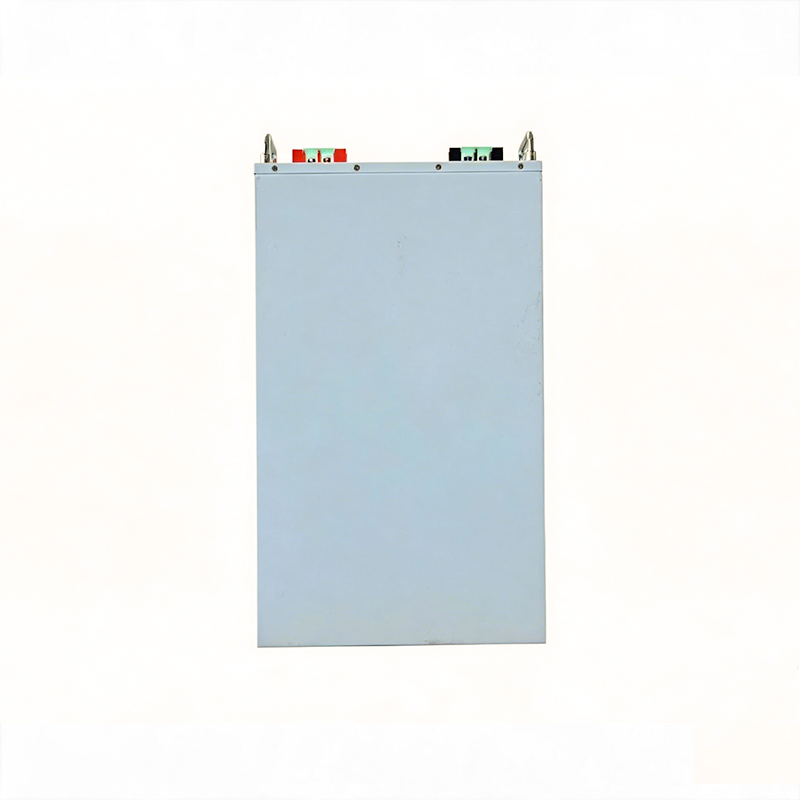

5kWh 51.2V Rack-Mount Stackable LiFePO4 Battery Module
5kWh 51.2V rack-mount LiFePO4 battery module with LCD display, designed for modular stacking up to 16 units. Equipped with multiple communication ports (RS485 / CAN / RS232) for mainstream inverter compatibility. Built-in intelligent BMS ensures safe and reliable operation. Suitable for residential, commercial and industrial energy storage systems.
Capacity / output
Voltage / cell type
Battery / efficiency
Share your quantity, application and destination.
Designed around your application.
19-inch rack format
A 5.12kWh battery module for 19-inch racks.
LCD status display
Read operating information on the integrated screen.
Parallel configuration
Materials list up to 16 units in parallel. Confirm system configuration.
System communication
RS485, CAN and RS232 interfaces are listed.
Technical specifications.
Specifications are based on supplied product materials. Confirm the configuration for your order.
Full product details
5kWh 51.2V rack-mount LiFePO4 battery module with LCD display, designed for modular stacking up to 16 units. Equipped with multiple communication ports (RS485 / CAN / RS232) for mainstream inverter compatibility. Built-in intelligent BMS ensures safe and reliable operation. Suitable for residential, commercial and industrial energy storage systems.
Features
- 51.2V LiFePO4 battery module with 5kWh capacity per unit.
- Modular stacking design supports up to 16 units in parallel for flexible capacity expansion.
- Front LCD display shows real-time voltage, current, state of charge and other operating data.
- Red and black Anderson-style terminals clearly marked with positive and negative signs for safe and easy wiring.
- Multiple communication interfaces: RS485-1, RS485-2, CAN, RS232, compatible with mainstream inverters.
- Status indicators show running, fault and alarm information at a glance.
- Metal carry handles on both sides for easy rack installation and transportation.
- Built-in intelligent BMS provides comprehensive protection including overcharge, over-discharge, over-current, short circuit and over-temperature.
- Standard 19-inch rack-mount design fits standard server cabinets.
- IP20 protection, suitable for indoor use.
- 6000 cycles at 80% depth of discharge and 0.5C discharge rate.
- There are handles on both sides for easy transportation.
Specifications
| Battery Type | LiFePO4 |
|---|---|
| Rated Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5.12kWh |
| Cycle Life | ≥6000 cycles |
| Max. Parallel Units | 16 |
| Communication | RS485-1 / RS485-2 / CAN / RS232 |
| Display | LCD screen |
| Terminals | Anderson-style (Red + / Black -) |
| Installation | 19-inch rack-mount |
| Protection | Overcharge / Over-discharge / Over-current / Short circuit / Over-temperature |
Built around your application.
Residential solar storage
Store solar energy for everyday use.
Backup power
Plan storage around your essential loads.
Off-grid systems
Review the complete system for remote locations.
Product questions.
Is it suitable for my system?
Send the equipment make and model, required capacity and installation details. Our team will review the product configuration with you.
Which configuration should I request?
Share the intended application, electrical requirements, available space and destination. Compare the specifications for the exact product.
Can the product carry my brand?
Discuss your branding, packaging and order requirements with our team. Available customization depends on the product and project.
